Resampling

In the previous section, we have seen how we can use importance sampling to represent one distribution with samples from a different distribution. However, this only works a while. As we continue to assimilate more and more data, the posterior will drift away from the prior, and eventually only a single particle will carry all weight, which loses information about uncertainty. This process is known as weight degeneracy.

To combat weight degeneracy, particle filters make use of resampling. Resampling draws new unweighted i.i.d. samples from the weighted ensemble, which concentrates samples in high-probability regions. One of the simplest resampling strategies is multinomial resampling, which simply draws new samples from the weighted ensemble:

1. Create an empirical CDF from the weighted samples

   \[C_{k} = \sum_{i=1}^{k} w_{i}, \quad k = 1,\dots,N\]

2. Draw a random parent index from the ECDF

   \[u_{n} \sim \text{Uniform}(0,1), \quad \min j\text{ s.t. }u_{n} \leq C_{j}\]

3. Inherent parent’s weights

   \[\boldsymbol{X}^{n} \leftarrow \boldsymbol{X}^{j}, \quad w_{n} = \frac{1}{N}\]

Example: resampling the 2D distribution

Note that resampling fundamentally does not improve the effective sample size (ESS). In fact, resampling generally decreases the ESS further. However, it concentrates samples in high-probability regions.

Fig. 74 Select a 2D distribution to sample, and then select another distribution you want to approximate with importance sampling then resample. Observe how different resampling schemes reduce the effective sample size. (Here, I used a special form of the ESS that accounts for replicate samples.)

Stochastic Universal Resampling

Over time, repeated multinomial resampling will also lead to ensemble collapse, as even samples with non-zero weight can randomly fail to be resampled and consequently become lost. Stochastic Universal Resampling (SUR) is another resampling strategy but generally results in less loss of sample diversity. SUR only samples a single random offset \(\gamma\), then samples the empirical cdf in regular increments.

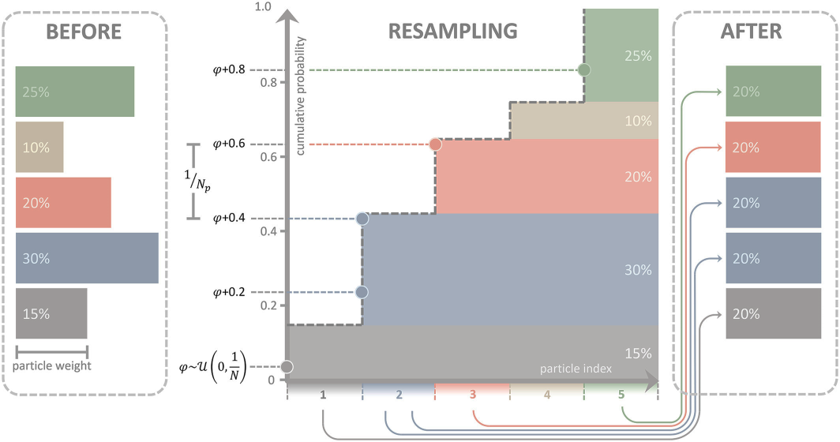

Fig. 75 A schematic illustration of Stochastic Universal Resampling.

SUR is less random and preserves more sample diversity than multinomial resampling:

Fig. 76 Select a resampling scheme and resample repeatedly to see how the ensemble diversity decays. Click “rejuvenate” to reintroduce diversity. Observe how SUR is less random, and preserves more sample diversity.
